High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine

Voltage
380V
Size
17000x5500x4100mm
Max film width
3000mm
Screw
75
Output
75-350KG
Suitable material
ldpe lldpe

High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine

Zhejiang Lifeng Machinery Co., Ltd

Zhejiang Lifeng Machinery Co., Ltd,which has more than 20years history in bag making line, Large scale, complete production system and high independent research and development capabilities.it is professionally manufacturing plastic soft packaging machine with high technology.The quality of its products had firstly passed the certification of quality management system ISO9001-2008 and CE certification of European Union. We are professional manufacture in kinds of Bag Making Machine,Film Blowing Machine,Printing Machine,Cutting Machine ,Recycle Machine,Plastic Air Bubble Film Machine,Laminating Machine,Slitting and Rewinding Machine are popular in all the markets of the whole world ,products are exported to eastern Europe,North America ,Southeast,Asia,Russia,Africa,Middle East and more than 20 countries and regions , They win good reaction in the market and welcomed by vast customers no matter new or old from home and abroad.



7 Layers Air Bubble Film Extrusion Machine (Three Extruders)

High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine

Air bubble film making machine Introduction

Air bubble film wrap is a flexible packaging and cushioning material made of apolymeric film comprising of small air pockets. Bubble wrap which protects items during shipping and for storage are generally available in different types and sizes.
This depends on the size of the object being packed, as well as the level of cushioning protection needed. It offers the most cost-effective protection for all your basic packaging needs. Air bubble film wrap is manufactured using the right proportion of special polymers to provide assured protection to the product throughout its life span.

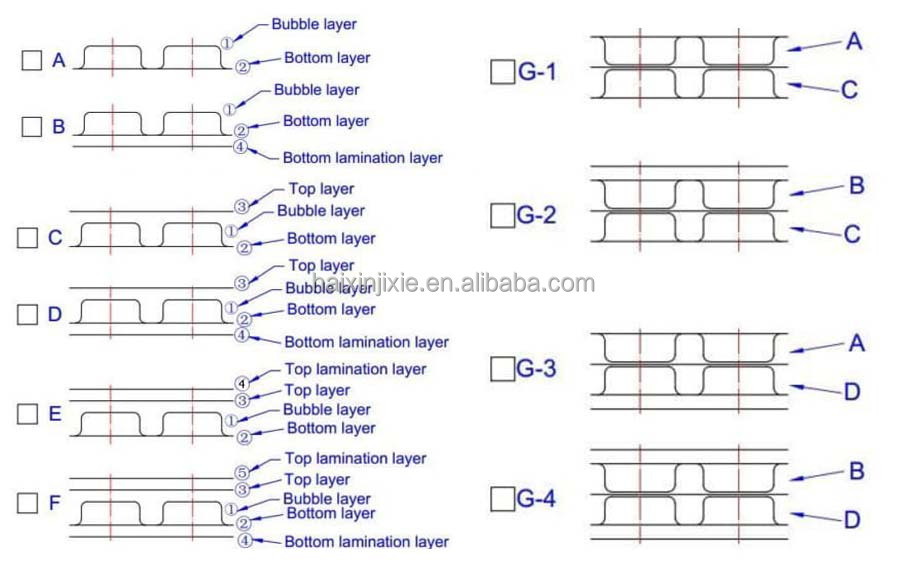

This multi-layer machine can produce
* 2 layers air bubble film
* 3 layers two-side-flat air bubble film
* 3 layers of laminated
* 4 layers laminated, and
* 5 layers of laminated air bubble film

As for the lamination material, it includes
* PE coated aluminum foil
* PE coated Kraft paper
* PE film, • PE foam
* PE coated anti-static film
* PE coated non-woven fabric and other PE coated materials to air bubble film.



High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine
Air bubble film making machine
Model
JDFPE-1600C
JDFPE-2000C
JDFPE-2500C
Main Extruder
Φ80/70mm
Φ90/80mm
Φ90/80mm
Minor extruder
Φ70mm
Φ80mm
Φ80mm
Film Width
1600mm
2000mm
2500mm
Capacity
200KG/Hour
250KG/Hour
250KG/Hour
Working Line Speed
35Meter/minute
35Meter/minute
35Meter/minute
Main Motor
30KW/22KW
45KW/30KW
45KW/30KW
Minor Motor
22KW
30KW
30KW
Total Power
225KW
284KW
327KW
Power Supply
380/3/4/50(Volt/Ph/Line/Hz)
380/3/4/50(Volt/Ph/Line/Hz)
380/3/4/50(Volt/Ph/Line/Hz)
Overal Demension
17000x5500x4100mm
18000x6200x4100mm
19000x6800x4100mm
Product Details
High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine
High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine
High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine
High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine

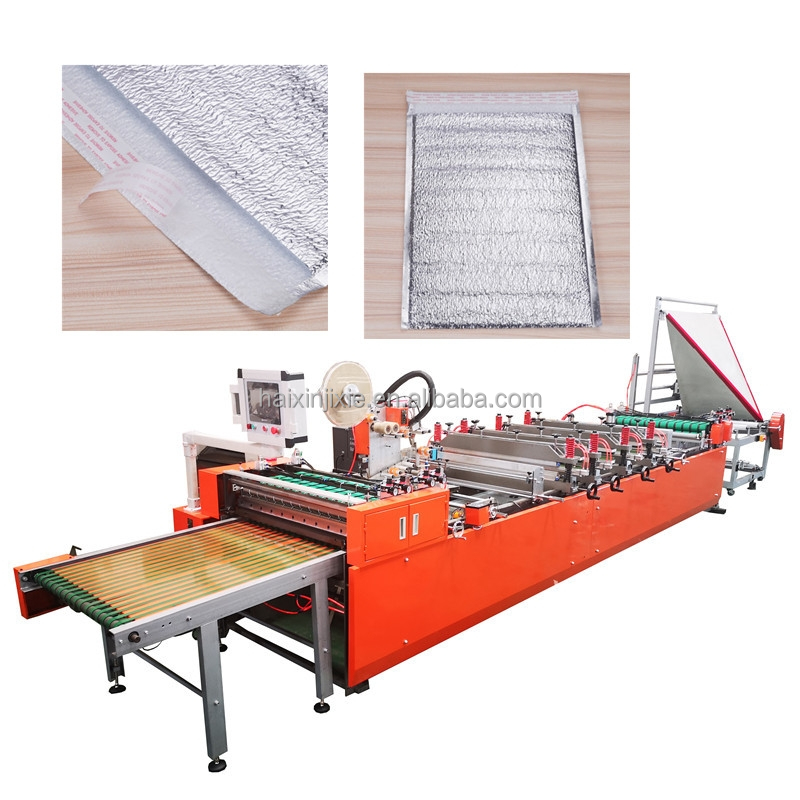

Other related machines--Air Bubble Bag Making Machine



High Speed 2/3/4/5/6/7 Layers Air Bubble Film Extrusion Machine (Three Extruders) Aluminium Flim Laminated Machine
If you want to know more machine information,please feel free to contact me ,we are glad to have chance to serve you
