Bridge Type Six Colors Flexo Letterpress Plastic Roll Printing Machine

Voltage
380v
Max film width
1600mm
Speed
130M/MIN
Material
Paper, PP, PET, PE, PVC, Non-woven Fabric

Bridge Type Six Colors Flexo Letterpress Plastic Roll Printing MachineBridge Type Six Colors Flexo Letterpress Plastic Roll Printing Machine

Bridge Type Six Colors Flexo Letterpress Plastic Roll Printing Machine

Feature

1. Machine wallboard casting, ensure the steady of machine

2. Independent ink motor, to prevent the ink drying.

3. Frequency control, work steady.

4. Heater drying.

5. Stop automatic when without material, and auto count function.

6. Accurate register, clear photo.

7. Adjust register easy and fast.

----------------------------------------------------------------------------------------------------------------------------------

Specification

Model

HHDB-6800

Printing material

Paper, PP, PET, PE, PVC, Non-woven Fabric

(MAX) Printing width

760mm

( MAX) Material width

800mm

MAX Printing length

191-1200mm

Printing speed

130m/min

Plate thickness

2.38mm

Ceramic Anilox roller

800 line

Unwinder/rewinder dia

1200mm

























Machine main details

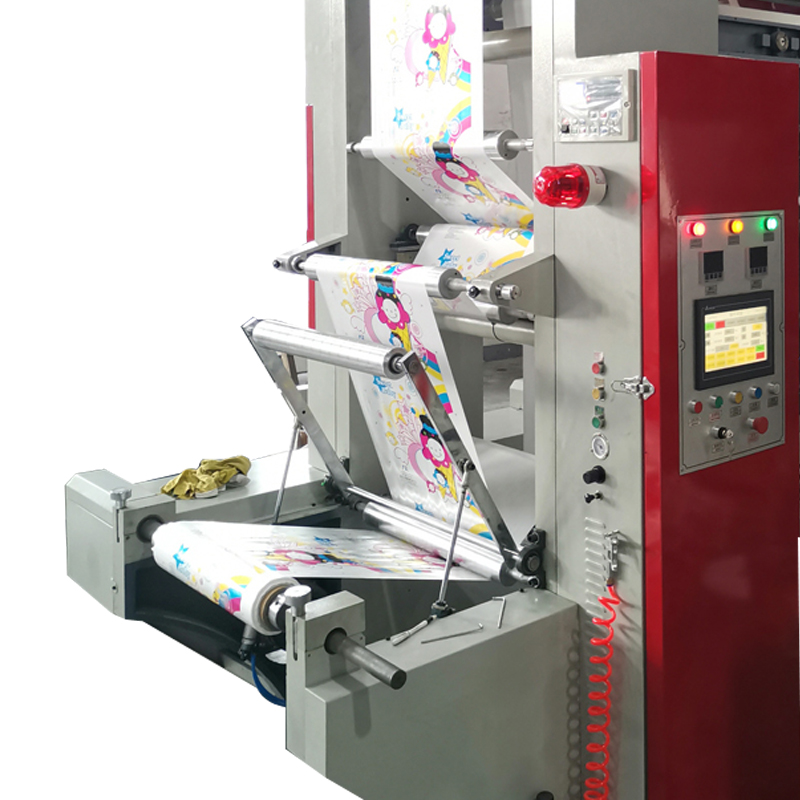

Unwinder and rewinder part:

Manual single Unwinder and rewinder

Bridge type six colors flexo letterpress plastic roll printing machine

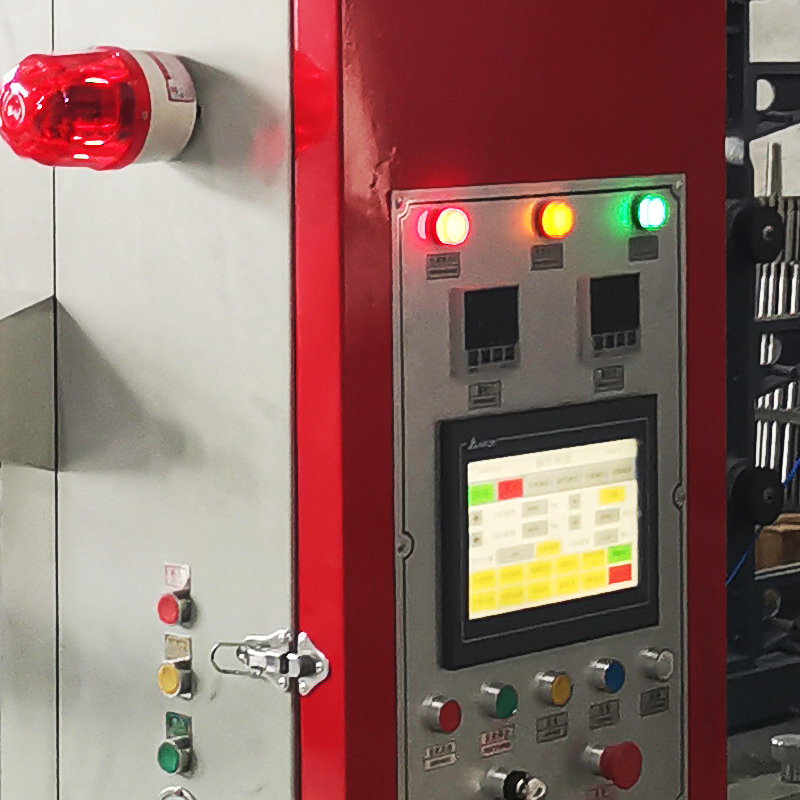

PLC and camera

Bridge type six colors flexo letterpress plastic roll printing machine



 Bridge type six colors flexo letterpress plastic roll printing machine



Printing and transferring parts:

Closed chamber: to make speed faster and the ink never splashs

Ceramic anilox roller to make the finished samples more accurate

Synchronous belt to guarantee good color register to save waste

 Bridge type six colors flexo letterpress plastic roll printing machine

Bridge type six colors flexo letterpress plastic roll printing machine

Drying part:

The oven length is 2.5 meters , all printing group is heat wind circulating

Bridge type six colors flexo letterpress plastic roll printing machineBridge type six colors flexo letterpress plastic roll printing machine



Machine workshop and loading pictures

Bridge type six colors flexo letterpress plastic roll printing machine
