Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

Voltage
380V
Size
10000×1800×2000 mm (L×W×H)
Speed
80-130pcs/min
Material
PE film and kraft paper laminated material

Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

Zhejiang Lifeng Machinery Co., Ltd

Zhejiang Lifeng Machinery Co., Ltd,which has more than 20years history in bag making line, Large scale, complete production system and high independent research and development capabilities.it is professionally manufacturing plastic soft packaging machine with high technology.The quality of its products had firstly passed the certification of quality management system ISO9001-2008 and CE certification of European Union. We are professional manufacture in kinds of Bag Making Machine,Film Blowing Machine,Printing Machine,Cutting Machine ,Recycle Machine,Plastic Air Bubble Film Machine,Laminating Machine,Slitting and Rewinding Machine are popular in all the markets of the whole world ,products are exported to eastern Europe,North America ,Southeast,Asia,Russia,Africa,Middle East and more than 20 countries and regions , They win good reaction in the market and welcomed by vast customers no matter new or old from home and abroad.



Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

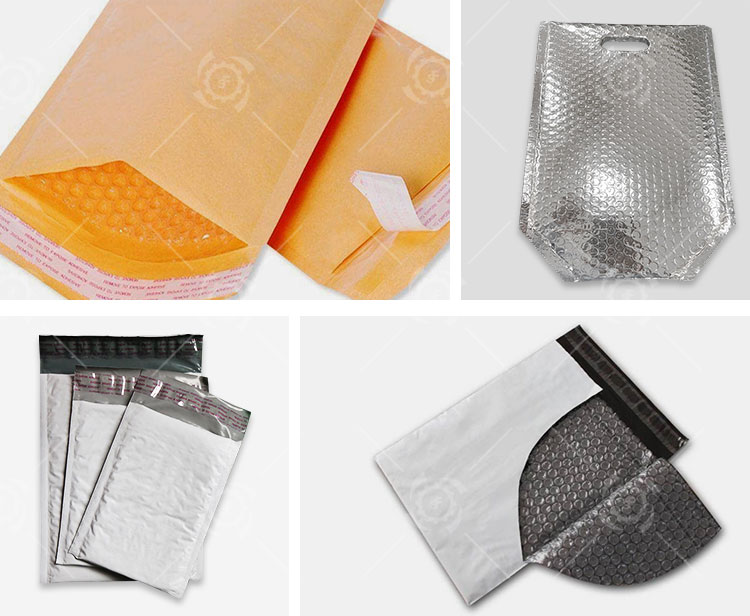

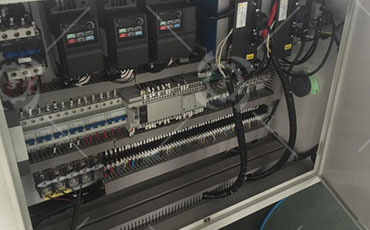

Air Bubble Courier Bag Making Machine. It is used for various kinds of PE film and kraft paper laminated material. It can make air bubble (courier, clothing, etc) packaging bags. This machine is fully automatic control and easy to operate. It has servo motors, inverters, PLC control, touch screen with parameters!
Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

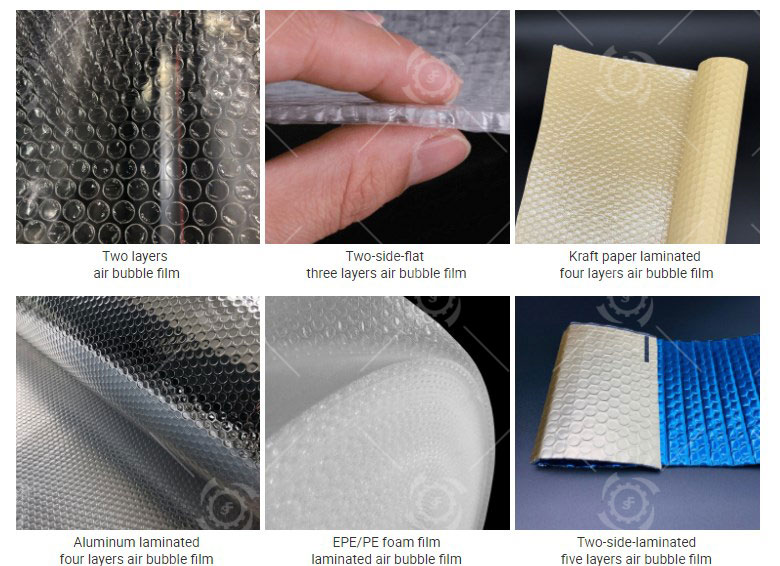

Applicable materials

Air Bubble Bag Making Machine Specification
Model
600
800
Applicable materials:
aluminum foil pearl cotton, composite bubble film, rubber strip
Material requirements:
Pearl cotton thickness within 2mm
Unwinding diameter:
1000mm
1200mm
Unwinding width
950mm
1150mm
Bag length
650mm
750mm
Bag width
800mm
1000mm
Speed
80 to 130 pieces/min (calculated according to bag size)
Machine Power
16KW
18KW
Working Voltage
220V 50HZ
Machine weight
3200KG
3500KG
Machine size
10000×1800×2000 mm (L×W×H)
10000×2100×2000 mm (L×W×H)

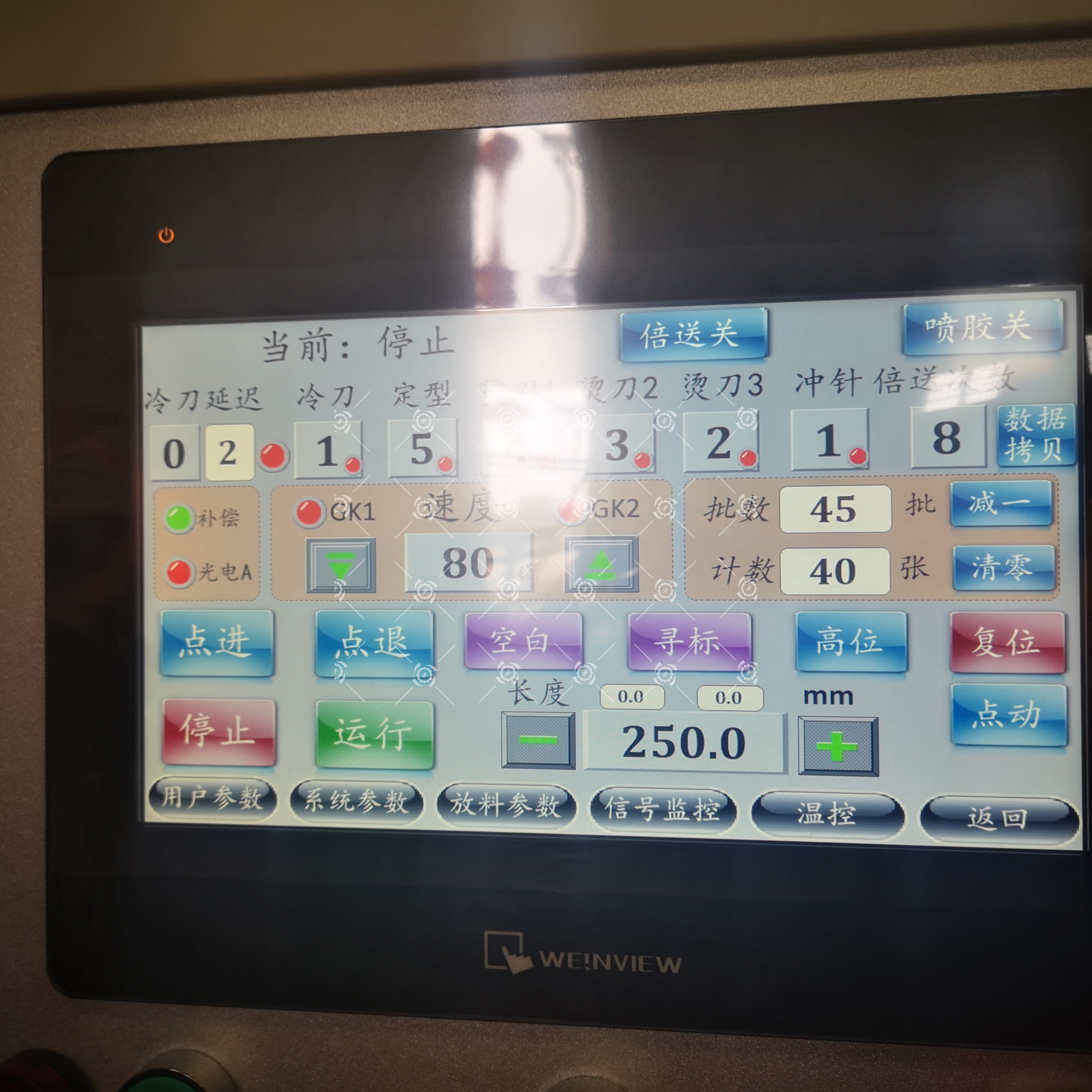

1 Using computer control system, man-machine interface, simple operation, accurate bag length.
2 Double-sided water-cooling bag making, rapid cooling, eagerly neat and firm sealing
3 Automatic folding and feeding, can make the bag with straight edge, wrong edge, no misplacement failure of bag making, can completely replace manual folding, saving labor cost.
4 Multiple bags can be fed at the same time, and the efficiency is doubled.
5 The eager-cutting mechanism is reasonably designed and can be applied to thin and soft bubble film and pearl cotton bags without material blocking failure.
6 Adjust the heat-sealing time parameters, which can be used to make pearl cotton bags with a thickness of less than 2mm without additional mechanisms.
7 The bag-making sealing line is firm and the production efficiency is high.
8 Easy to use, flexible and stable speed regulation.

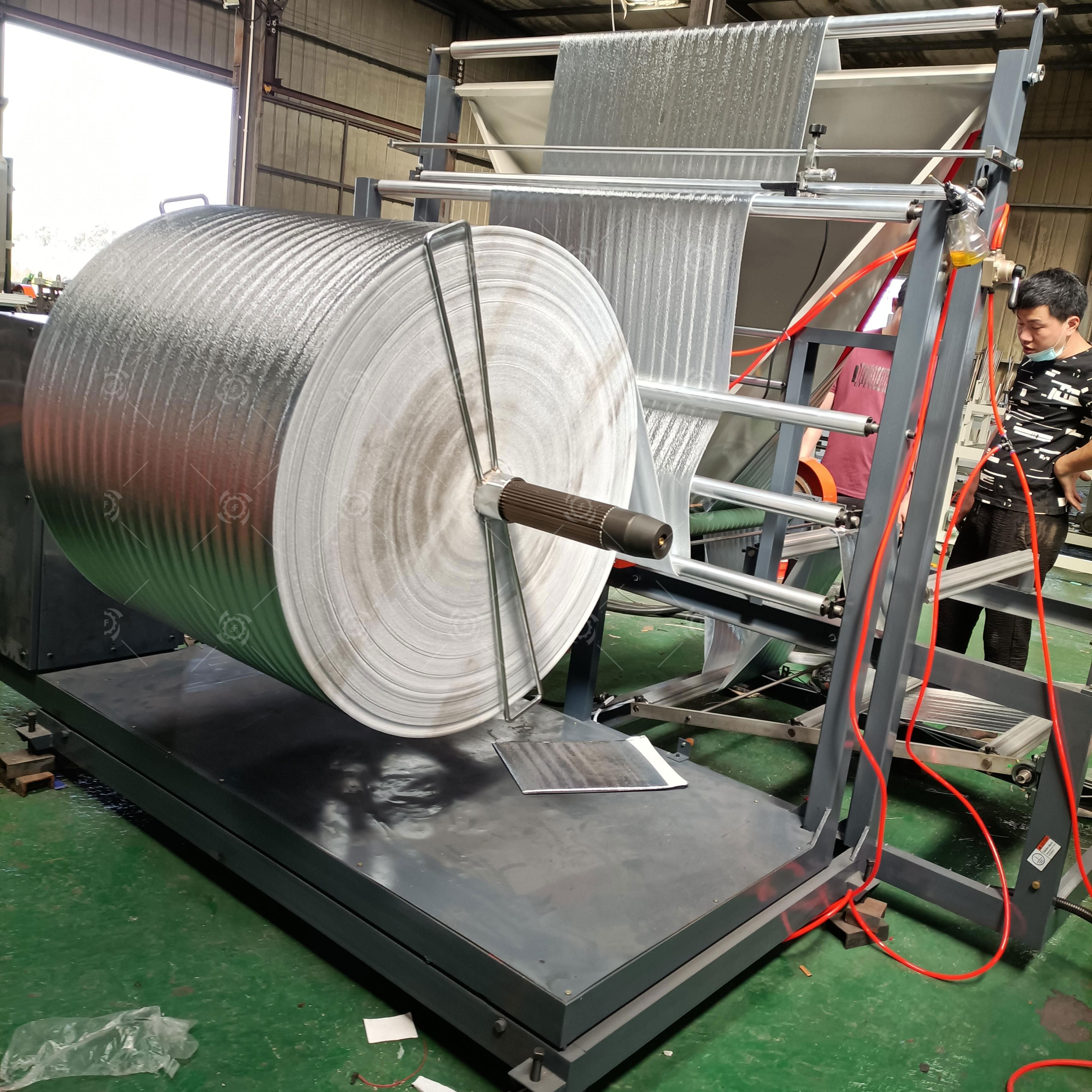

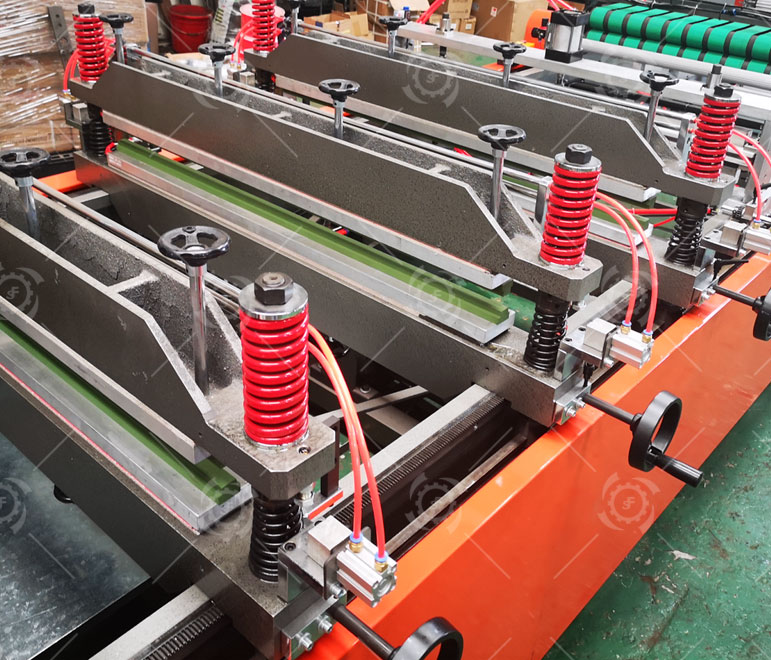

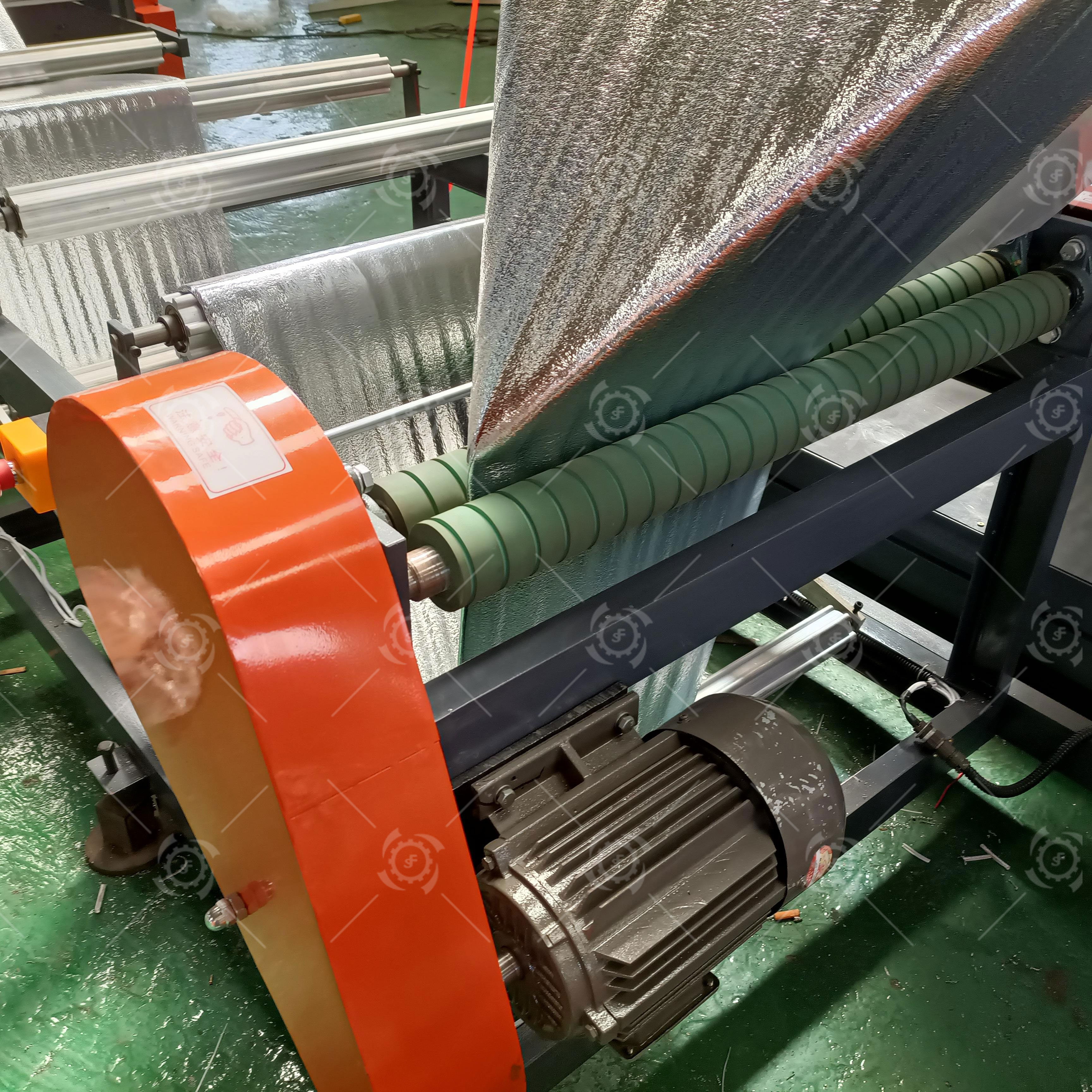

Air Bubble Bag Making Machine Details

Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine

Kraft Paper Air Bubble Film Envelope Bag Making Machine Air Bubble Mailer Production Machine
